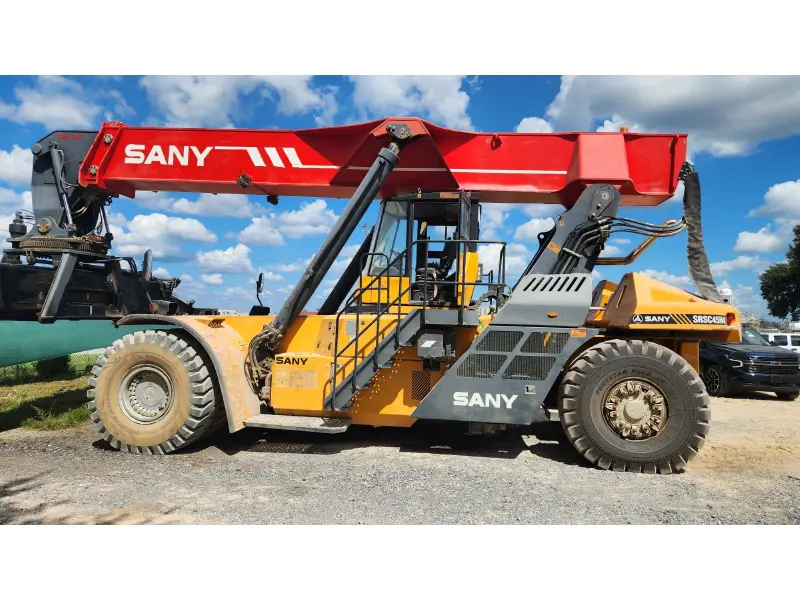

2018 SANY SRSC45H4 Reach Stacker

2018 Sany SRSC45H4 Reach Stacker, 45 Ton Base Capacity, Stacks 5 High, 20-40 Spreader, w/ Rotation, Cummins Diesel Engine, Cab, and more!  $315,000 OBO

The SRSC45H4 Reach Stacker, part of the Reach Stacker series, is a robust forklift model designed for heavy-duty applications. It features a powerful Cummins QSL9 Diesel Engine and an efficient hydraulic system, making it ideal for handling large loads. With a load capacity of up to 99,200 lbs, it is well-suited for demanding environments. The model's safety features, including a reverse camera and object detection system, ensure secure operations. Its versatile load handling capabilities make it a valuable asset for various container handling tasks.

Specifications

Engine: Cummins QSL9

Rated Power (kW/rpm): 261 / 2100

Max Torque (Nm/rpm): 1628 / 1500

Emission Standard: IV Stage

Transmission: DANA 15.5HR36000

Drive Axle: Kessler D102 PL341

Spreader Model: SDJ450H

Other Specs:

Operational

Load Capacity: 99,200 lb/ 33,100 lb/ 68,200 lb

Tires

Type (Front) Pneumatic

Type (Rear) Pneumatic

Type (Caster) Pneumatic

Tire Size (Front): 18.00x25 40 PR in

Tire Size (Rear): 18.00x25 40 PR in

Power system

Battery voltage: 24 V

Control Type (Drive): Ergonomic Multifunction Joystick

Internal combustion engine - Make / Model: Cummins QSL9 Diesel

Rated Horsepower @ rpm (SAE): 350 hp

Rated Torque @ rpm (SAE): 1,200 ft-lb

Fuel Tank Capacity: 172 gal/ 5 gal

Truck weights

Weight Distribution - Full load (Front / Rear): 34,870 lb

Performance Data

Travel Speed (Forward / Reverse) | Full Load: 13 mph

Lifting Speed | Full Load: 43 fpm

Lowering Speed | Full Load: 70 fpm

Exterior dimensions

Maximum Lift Height: 594 in

Overall Length: 446 in

Turning Radius (outside): 315 in

Basic Right-Angle Stack: 445 in

Wheelbase: 236 in

Boom angle (min/max): 0/60 in
